Building Reliable Meraki WiFi for Warehouse Operations in China. Case Study.

# Meraki WiFi for Warehouse in China # Cisco Meraki Partner in China
# Industrial WiFi China # Enterprise WiFi China
#Warehouse WiFi Deployment China

CIsco Partner China, Building Reliable Meraki WiFi for Warehouse Operations in China

Case Study: EFC Shanghai. WiFi for Warehouse in China.

Project Date: October 2025
Client: EFC Shanghai (efc‑intl.com)
Technology: Cisco Meraki WiFi 7 (Enterprise WLAN Infrastructure)

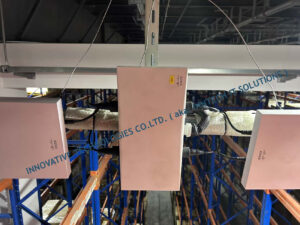

Meraki outdoor WiFi deployed with an MA‑ANT‑25 directional patch antenna.
Warehouse project in China.

Cisco Meraki Warehouse WiFi

WiFi for Warehouse: Project Background.

In October 2025, InnTech Solutions successfully delivered a WiFi for Warehouse deployment for EFC Shanghai, a multinational organization operating a large‑scale logistics and warehousing facility in China.

The objective of the project was to build a reliable, enterprise‑grade wireless network capable of supporting day‑to‑day warehouse operations in a challenging physical environment.

InnTech was recommended by the Cisco Global Team after EFC requested a partner in China with strong experience in Cisco Meraki Warehouse WiFi, combined with proven planning, deployment, and communication capabilities—not simply a hardware reseller.

The client required a partner with:

  • Deep technical expertise across Cisco and Meraki product lines
  • Official Cisco partner certification
  • Proven warehouse and industrial WiFi deployment experience
  • Strong English communication skills to collaborate with regional and global stakeholders
  • Certified engineers and equipment suitable for high‑altitude installation
  • Advanced WiFi simulation, RF testing, and validation tools
Certifications and Compliance: High‑Altitude Installation Authorization, Work Safety Qualification Certificate, and Valid Work Insurance.
Wifi for Warehouse in China, High‑Altitude Installation Work Certificates

Why InnTech Was Selected for Warehouse WiFi Deployment in China.

After a competitive evaluation process, InnTech Solutions was selected as the project partner.

The decision was based on InnTech’s ability to demonstrate both technical depth and delivery capability, rather than focusing solely on selling hardware.

Key differentiators included:

  • Cisco Core Partner and Select Integrator status
  • Deep expertise in Cisco Meraki Warehouse WiFi
  • Extensive experience delivering Industrial WiFi projects across China
  • Fully in‑house cabling and installation teams (no outsourcing)
  • Dedicated project managers experienced in enterprise and industrial environments
  • Certified technicians authorized for working at height
  • English‑speaking engineers with 20+ years of IT experience

InnTech demonstrated not only technical excellence, but also a strong ability to translate business needs into practical enterprise WLAN design and execute projects reliably.

InnTech is a Legacy Cisco Select Integrator in China and Cisco Core Security Solution Partner

Cisco Meraki Reseller in China

WiFi for Warehouse, Challenges and Requirements.

EFC already had an existing warehouse WiFi system deployed approximately six years earlier by another supplier, who was also a Cisco reseller. Despite using branded equipment, the solution failed to meet operational requirements. The challenges were related not only to technology, but also to limited technical depth and insufficient English communication, which made it difficult to:

  • Clearly understand warehouse operational requirements.
  • Design effective high‑density warehouse WLAN coverage.
  • Perform accurate RF planning and validation.
  • Collaborate efficiently with regional and global IT teams.

As a result, the existing WLAN suffered from unstable connectivity, inconsistent coverage, and weak signal penetration, particularly in areas with 10–11 meter shelving and long, narrow aisles.

EFC therefore decided to seek a partner who could deliver Meraki WiFi for Warehouse environments in China, combining solid engineering capability with clear communication and accountability.

InnTech technicians performing high‑altitude installation of Meraki WiFi for warehouse infrastructure

InnTech technicians performing installation of Meraki Wifi for warehouse at height

WiFi for Warehouse: Technical Design Approach

Warehouse Environment Overview

The warehouse presented several physical challenges:

  • Warehouse height of approximately 11 meters
  • Shelving heights reaching 9–10 meters
  • Long, narrow aisles between dense metal racks
  • Complex RF conditions caused by signal reflection and absorption

These conditions required a custom WiFi for Warehouse design, rather than a standard office WLAN approach.

InnTech conducted RF simulation and on‑site testing to determine:

  • Proper access point spacing
  • Antenna selection and orientation
  • Optimal mounting height and positioning

The objective was consistent and predictable WiFi coverage throughout the entire warehouse —not just strong signal in selected areas.

Omnidirectional antenna angled installation in a high‑ceiling warehouse environment

Warehouse WiFi Deployment China

Design Principles. Meraki WiFi for Warehouse.

The final design was based on:

  • Omnidirectional WiFi coverage optimized for warehouse aisles
  • Precisely calculated antenna orientation and mounting height
  • Custom‑fabricated mounting poles and fixtures
  • Access point placement validated through simulation and on‑site testing

Cisco Meraki Warehouse WiFi Solution.

The final solution was built on a Cisco Meraki enterprise infrastructure, providing performance, resilience, and centralized management.

Core Components

  • Cisco Meraki MR outdoor access points with MA-ANT-25 omnidirectional antennas
  • Cisco Meraki MX security appliance
  • Cisco Meraki MS PoE switches
  • Centralized monitoring and management via the Meraki Dashboard

Meraki outdoor WiFi deployed with an MA‑ANT‑25 directional patch antenna. ( rear-view )

Meraki WiFi for Warehouse MR76 with MR25 Antenna rearview installation China by InnTech

Planning, Simulation, and Validation of WiFi For Warehouse.

To ensure performance and reliability, InnTech carried out

  • RF simulation and warehouse coverage modeling
  • On‑site RF testing using professional measurement equipment
  • Optimization using Aryaka APOS and simulation tools
  • Final access point locations validated through real‑world testing

Cabling and Physical Works.

A reliable Warehouse WiFi deployment depends heavily on the quality of cabling and physical installation.

InnTech executed all cabling and physical works using in‑house teams, ensuring quality control and close coordination throughout the project.

Key works included:

  • Installation of CAT7 shielded twisted‑pair (STP) cabling
  • Fiber‑optic backbone runs for core connectivity
  • Custom‑fabricated ceiling mounting poles for access points
  • Metal cable trays and reinforced cable pathways
  • Certified safety equipment and procedures for high‑altitude work

All installations were designed to support long‑term reliability, ease of maintenance, and future scalability.

Effective high‑density warehouse WLAN coverage. Cisco Outdoor WiFi

CAT7 STP Cables for Warehouse WiFi Project

The Result: Stable, Enterprise‑Grade Warehouse WiFi.

After deployment, the improvement was immediately noticeable.

EFC’s warehouse now operates on a reliable, enterprise‑grade WiFi for Warehouse infrastructure that supports daily operations without interruption.

Key results include:

  • ✅ Consistent WiFi coverage throughout the warehouse
  • ✅ Stable performance in high‑ceiling, narrow‑aisle areas
  • ✅ Improved reliability for mission‑critical operations
  • ✅ Centralized monitoring and easier management
  • ✅ A scalable foundation for future growth

Effective high‑density warehouse WLAN coverage. Cisco Outdoor WiFi

Industrial ceiling with exposed ducts, pipes, and metal racking; yellow circles highlight electrical components (hazard area) above workspace

From WiFi for Warehouse project extending the Partnership to Managed IT Services.

The success of the warehouse WiFi project led EFC to further engage InnTech as their Managed Service Provider (MSP) in Shanghai.

InnTech now provides:

  • On‑site IT maintenance and support for EFC’s Shanghai office
  • Infrastructure consolidation across warehouse and office environments
  • Ongoing IT support, optimization, and advisory services
  • Support for additional enterprise WiFi and office IT initiatives

Today, EFC remains an active client for IT maintenance services, working with InnTech as a long‑term partner rather than a one‑time supplier.

Proven Experience in Industrial and Enterprise WiFi in China.

This project is one of many WiFi for Warehouse, Industrial WiFi, and Enterprise WiFi deployments in China delivered by InnTech for multinational customers.

With certified engineers, in‑house teams, and a strong focus on planning and execution, InnTech delivers end‑to‑end enterprise IT solutions for complex environments, helping organizations build systems that simply work.

The EFC Shanghai project demonstrates InnTech’s ability to deliver reliable WiFi for Warehouse operations in China, even in demanding industrial environments.

By combining Cisco Meraki technology, careful planning, high‑quality cabling, and certified execution, InnTech delivered a solution that is stable, secure, and designed to support mission‑critical operations over the long term.
